For plastic structural parts, shell parts, functional parts and consumer product parts, injection molding is usually a key process from engineering verification to stable mass production. It can continuously produce a large number of parts with high consistency in a short cycle, taking into account appearance quality, assembly accuracy and unit cost control.
However, the difficulties of injection molding projects are also very obvious: in the early stage, material selection, structural DFM, mold plan evaluation, mold trial verification, dimensional mold modification, and mass production ramp-up are required. If any link is not handled properly, it may lead to cycle delays, cost increases, and even mass production out of control. This article will dismantle the key logic of injection molding around the "from mold to mass production" system.
1. What is injection molding?
Injection molding is a high-efficiency batch manufacturing process in which plastic particles are heated and melted, and then the melt is injected into the mold cavity at high speed through the screw of the injection molding machine. After pressure holding, cooling, and mold opening and ejection, target plastic parts are formed.
Compared with CNC machining and 3D printing, the advantages of injection molding are low unit cost, high batch consistency, fast cycle time, and suitable for complex appearance and assembly structures; the difficulty lies in the early investment in molds, and design modifications need to consider the cost of mold repair, mold modification, or even mold re-opening.
Suitable for mass production
When project requirements increase from hundreds or thousands of pieces to tens of thousands or more, the overall cost advantage of injection molding will become more and more obvious.
High structural integration
Buckle, column position, rib position, screw column, assembly surface, etc. can be formed in a single piece, which facilitates subsequent assembly and reduces costs.
Better appearance consistency
For housing and consumer electronics parts, injection molding makes it easier to take into account texture, color, batch consistency and delivery efficiency.

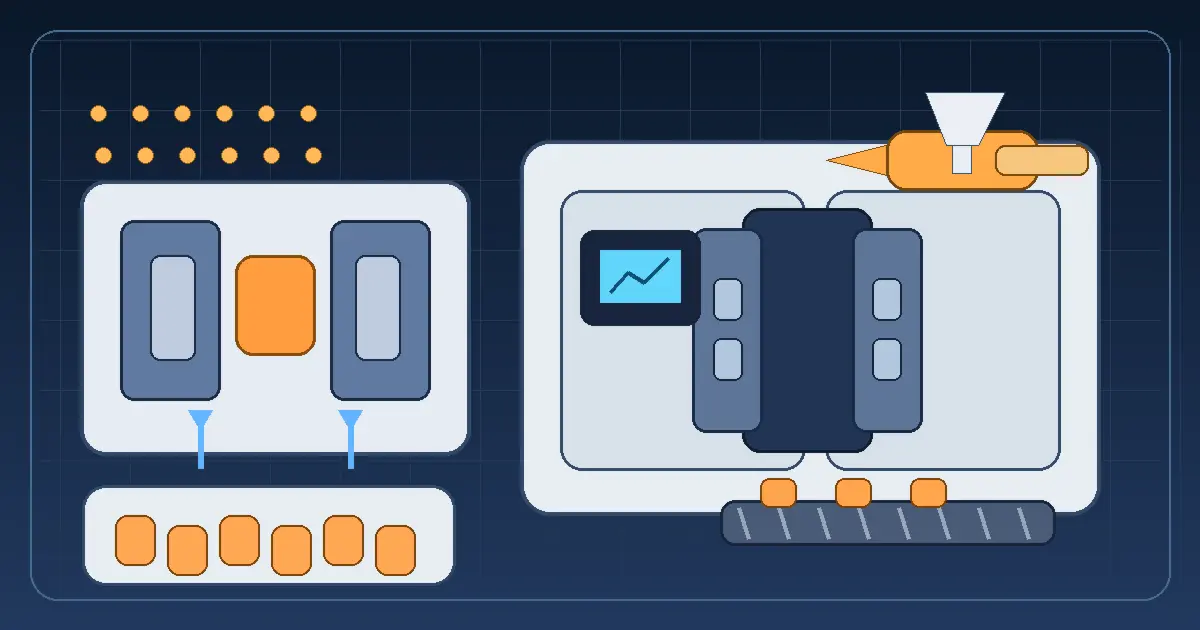

2. Basic principles of injection molding
The essence of the injection molding process is to allow thermoplastics to flow into the mold cavity under controlled temperature, pressure and time conditions, and then replicate the internal geometry of the mold after cooling. The final quality of the part not only depends on the mold itself, but is also highly related to material fluidity, gate location, wall thickness design, cooling efficiency, shrinkage and process parameters.
- Plastic pellets enter the hopper and are heated and plasticized in the barrel
- The screw moves forward and the molten plastic is injected into the mold cavity.
- Maintain pressure and fill materials to reduce shrinkage and dents
- Cool and shape, wait for the part to reach demoulding strength
- The mold is opened and the ejector pin or ejector block ejects the part
- Enter the next cycle and continue mass production
3. The complete process from mold to mass production
Requirements confirmation
Clarify product usage, annual demand, appearance grade, assembly requirements, testing standards and target delivery date.
Structural DFM assessment
Check risks such as wall thickness, draft, undercuts, buckles, rib locations, column locations, parting surfaces and gate locations.
Mold plan formulation
Determine the number of mold cavities, steel material, runner system, gate form, ejection method, cooling layout and life requirements.
Mold opening and testing
After completing the mold base, inserts, EDM, wire cutting, and assembly, conduct a T0/T1 trial mold to verify the appearance and size.
Mold optimization
Improve flash, shrinkage, warpage, dimensional deviation, demoulding and assembly issues based on mold trial results.
Mass production ramp
Determine the process window, first article standards, inspection rules, packaging plan and material preparation plan, and enter stable delivery.
For most projects, what really affects the cycle is not the "mold opening itself", but the problem closure speed after the mold trial. An experienced team will usually digest more risks in the DFM and mold planning stages before opening the mold to reduce subsequent repeated mold repairs.
4. What parts does the injection mold consist of?
Injection molds are more than just cavities and cores. A complete mold system usually includes a molding system, a pouring system, a guide system, a cooling system, an exhaust system, an ejection system, and the necessary slider, inclined roof and hot runner modules. Different structural complexity corresponds to different mold solutions and costs.
| module | Main function | Impact on the project |
|---|---|---|
| Cavity/Core | Determine part shape, size and texture details | Directly affects part appearance, shrinkage and dimensional accuracy |
| Runner/Gate | Control the path and location of plastic flow to the cavity | Affects mold filling balance, gate marks, deformation and filling difficulty |
| cooling system | Remove heat and control cooling uniformity | Impacts cycle time, warpage risk and dimensional stability |
| Exhaust system | Release air and volatile gases in the cavity | Affects scorching, short shots, surface defects and mold filling integrity |
| ejection system | Ensure smooth demoulding of parts | Affects top white, top height, distortion and automation beats |
| Slider / sloped roof | Handle complex structures such as side holes and undercuts | Increased structural freedom, but higher mold cost and maintenance complexity |
5. How to choose common injection molding materials
The selection of injection molding materials should not only look at "can it be molded", but also depends on strength, toughness, heat resistance, chemical resistance, dimensional stability, appearance requirements, certification requirements and target cost. Different materials will directly affect shrinkage, mold design, tolerance capabilities and mass production stability.
- ABS：Balanced comprehensive performance and good appearance, suitable for housings, panels, and consumer electronics appearance parts
- PP：Good toughness, low cost, fatigue resistance, suitable for fasteners, daily necessities, and automotive interior parts
- PC：Good strength and impact resistance, suitable for protective covers, transparent parts, and functional shells
- PA / PA+GF：Wear-resistant and high-strength, suitable for gears, brackets, connectors and engineering functional parts
- POM：Low friction, dimensional stability, suitable for transmission and mechanism functional parts
- PMMA：Excellent transparency, suitable for lampshades, windows, and decorative transparent parts
- TPU / TPE：Soft and elastic, suitable for encapsulation, buffering, sealing and protective parts
6. What are the alternatives during the prototyping stage?
Many projects will not directly enter mass production mold development before the official steel mold. In order to verify appearance, assembly or function, faster and more flexible prototyping methods are often used to reduce decision-making risks.
3D printing samples
Suitable for early appearance and structural verification, short cycle, suitable for rapid iteration, but there are differences in performance from real injection molding materials.
CNC machining sample parts
Suitable for verifying the strength, assembly and surface treatment of real plastic materials, suitable for structural critical parts and functional testing.
Vacuum casting
It is suitable for verification of a small number of appearance parts and display parts, and can be used in small batches. The cost is lower than formal mold opening, but the lifespan is limited.
Aluminum mold / soft mold
It is suitable for bridging trial production and small batch verification, and can be closer to the real injection molding state, but its durability and lifespan are lower than mass production steel molds.
For projects whose needs have not yet been completely locked in, it is usually safer to use alternative solutions to confirm the structure and appearance before entering into formal steel mold development than to directly develop mass production molds from the beginning.
7. What parameters should be controlled during mass production?
The key to mass production of injection molding is not just “to be able to produce it”, but “to be able to produce it stably every day and to be consistent between batches”. Volume production management usually revolves around the following parameters:
- Barrel temperature:Affects plasticizing quality and melt fluidity
- Mold temperature:Affects appearance, degree of crystallization, shrinkage and dimensional stability
- Injection speed and pressure:Impact on filling integrity, weld marks and risk of flash
- Holding time and holding pressure:Affects shrinkage, weight stability and dimensional compensation
- Cooling time:Affects cycle, deformation and demoulding stability
- Raw material drying conditions:It is especially critical for hygroscopic materials such as PC and PA.
- Cycle time:Determine production capacity, cycle time and unit manufacturing cost
8. Common defects and improvement directions
| FAQ | Typical performance | Possible reasons | Improvement direction |
|---|---|---|---|
| Shrinkage / dent | Partial subsidence on the surface and obvious thickness on the back | Excessive wall thickness, insufficient pressure holding, and uneven cooling | Optimize wall thickness, increase holding pressure, improve cooling |
| Warpage | Parts are bent and assembly is uneven | Uneven wall thickness, unbalanced flow direction, cooling differences | Improve structural uniformity, adjust gates and cooling |
| Flying edge | Parting surface or slider position overflow | Insufficient clamping force, mold fit gap, and excessive pressure | Repair molds, adjust processes, and verify clamping force |
| short shot | The part is not full and there is lack of material at the corners. | Poor exhaust, insufficient fluidity, gate too small | Improve exhaust, temperature rise, optimize gates and runners |
| Weld marks | There are obvious wiring at the confluence location | The flow front temperature is low and the glue feeding path is unreasonable. | Adjust the process, change the gate, and optimize the flow direction design |
| Top white / top hurt | The position of the thimble is white and the indentation is obvious. | High demoulding resistance and unreasonable ejection layout | Add draft, adjust ejection point and surface treatment |
9. Core factors affecting injection molding quotation
Injection molding project quotations are usually composed of "mold cost + single piece production cost + post-processing/assembly/packaging cost". If you only look at the price of a single piece, it is easy to overlook that the real bulk cost actually comes from the early mold and mass production organization.
- Part size, volume and weight
- Structural complexity, whether there are undercuts, sliders, inclined roofs, inserts, etc.
- Mold steel, life requirements and number of mold cavities
- Material type, flame retardant grade, glass fiber content and color requirements
- Surface texture, polishing grade, appearance grade
- Do you need hot runner, automatic demoulding, automatic gate cutting?
- Annual demand, batch size and delivery pace
- Subsequent spraying, silkscreen printing, assembly, inspection and packaging requirements
10. How to reduce mold opening risks through DFM
Excellent injection molding projects often prevent most problems before opening the mold. The following are the most common and effective DFM optimization directions in structural engineering:
- Try to ensure that the main wall thickness is relatively uniform and avoid sudden changes in thickness over large areas.
- For appearance parts and high-gloss parts, priority should be given to gate marks, ejector pin marks and parting line locations.
- Set a reasonable draft angle in advance to reduce the risk of demoulding strain and whitening.
- The rib thickness should be avoided to be too thick, and is usually controlled within a certain proportion of the main wall thickness.
- Buckle, column position and screw column should take into account the assembly strength and molding shrinkage.
- Structures with side holes and undercuts should be evaluated as much as possible to see if they can be simplified and the number of sliders reduced.
- Key dimensions, tolerances and appearance grades must be clarified in advance to avoid repeated changes after mold trial.
For complex shell parts, transparent parts and high-assembly precision parts, it is recommended to conduct a mold flow analysis or at least a systematic DFM review before officially opening the mold. This will make it easier to detect the risks of filling, welding, shrinkage and warpage in advance.
11. When is it appropriate to switch from prototyping to mass production?
Not all projects are suitable for entering formal mass production models from the beginning. It is generally recommended to meet the following conditions at the same time before entering into steel mold development and mass production preparations:
- The product structure has been basically locked, and there will be no major revisions in the short term.
- Material, appearance and assembly requirements are defined
- Have clearer sales forecasts or annual purchasing plans
- The functional test and sample verification results basically passed
- The project can bear mold investment and accept mold trial and mold repair cycles
If the product is still in the stage of frequent revisions, giving priority to 3D printing, CNC or soft mold transition is usually more conducive to controlling the overall development risk.
12. How to choose a reliable injection molding supplier
- Do you have experience in early DFM assessment, mold plan design and mold repair?
- Whether it can provide integrated collaboration capabilities from prototyping and trial molding to mass production
- Are you familiar with different material properties, shrinkage rates and application limitations?
- Whether it has the capabilities of dimensional inspection, appearance standard definition and mass production quality control
- Whether to support post-processing, assembly, packaging and multi-process package delivery
- Can you communicate problems transparently and provide engineering suggestions instead of just taking orders and executing them?
For plastic parts projects, a truly reliable supplier does not just "have machines and mold rooms", but can help you avoid risks in the early stages of the project, quickly close the loop on problems during the trial mold stage, and maintain long-term stability during the mass production stage.
13. XPartsLab injection molding service capabilities
XPartsLab focuses on custom manufacturing of industrial-grade parts and supports multi-process collaboration such as injection molding, CNC machining, 3D printing, sheet metal fabrication, and vacuum casting. For injection molding projects, we can provide complete support from structural evaluation, material suggestions, sample verification to mold development and mass production delivery.
Pre-engineering support
Support structural DFM, material selection, mold plan suggestions and prototyping path evaluation.
Multi-stage manufacturing connection
Supports 3D printing/CNC prototyping, soft mold verification, steel mold mass production and subsequent processing and assembly collaboration.
Delivery for mass production
Suitable for robots, consumer electronics, automation equipment, medical and industrial plastic parts projects.
Need injection molding prototyping, mold opening or mass production support?
Upload 3D drawings or 2D drawings to get engineer DFM assessment, material suggestions, mold plans and quotation support.
FAQ
What quantity of parts is suitable for injection molding?
Generally, from hundreds to hundreds of thousands of pieces are suitable for injection molding. The greater the demand, the easier it is for mold costs to be diluted, and the more obvious the cost advantage per piece becomes.
If there is no formal steel mold, can we make injection molding samples first?
Can. Common alternatives include 3D printed prototypes, CNC processed plastic prototypes, vacuum replica molds, and aluminum mold/soft mold trial production. A more appropriate path can be selected based on verification goals, quantity, and budget.
How long is the development cycle for injection molded parts?
Depends on part complexity, mold structure and number of mold repairs. Regular projects usually take several weeks from DFM assessment, mold opening to the first round of mold testing, and the cycle of complex projects will be even longer. What really affects the progress is often the speed of problem closure after mold testing.
Why are injection molded parts prone to shrinkage and warping?
Common causes include uneven wall thickness, unreasonable gate location, insufficient pressure holding, unbalanced cooling or material shrinkage. This type of problem usually requires joint optimization from three aspects: structure, mold and process.
What information do I need to provide when quoting an injection molding project?
It is recommended to provide 3D files, 2D drawings, material requirements, appearance standards, quantity requirements, application scenarios and delivery time information. If there are assembly relationships, color requirements or testing standards, these should also be stated to improve the accuracy of the assessment.
