Core advantages
Low cost, wide material availability, good plasticity, good toughness, good weldability, good cold workability, suitable for stamping and bending, suitable for ordinary sheet metal fabrication, and low-cost batch metal parts.
Material Database

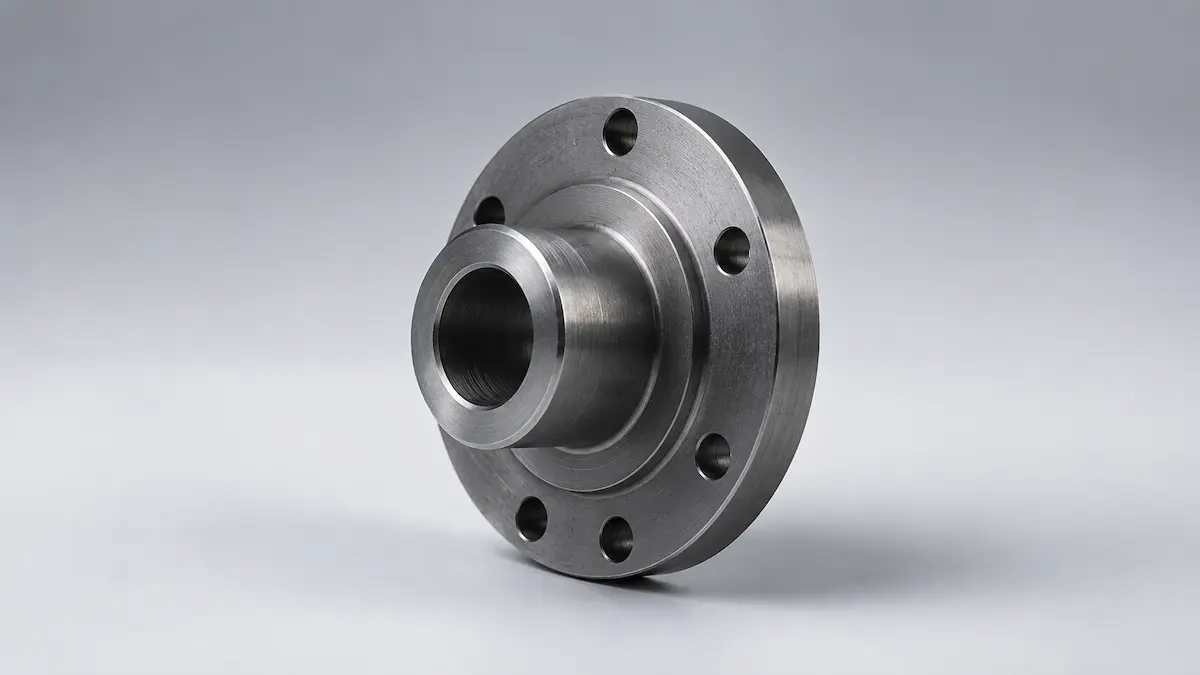

Q195 Carbon Steel
Suitable for low-strength structural parts, stamped parts, bent parts, welded parts, ordinary sheet metal parts, low-cost hardware, and light-duty metal parts as ordinary low-carbon steel materials.
Material description
Q195 is a type of ordinary carbon structural steel, classified as a low-carbon steel material, with good ductility, toughness, weldability, and cold working performance. Its strength is not high, but it has good forming properties, low material cost, and wide availability. It is commonly used in stamped parts, bent parts, welded parts, ordinary sheet metal parts, low-load structural parts, iron wire, steel pipes, brackets, and hardware parts. Compared to Q235, Q195 has lower strength but is better suited for light-load, forming, and low-cost applications.
CNC MachiningMetals
Material compatibility assessment
By focusing on application scenarios, boundaries of advantages, and non-recommended scenarios, it helps sales, customer service, and quoting staff quickly determine whether the material meets current part requirements.
Suitable for the product
Standard sheet metal parts, stamped parts, bent parts, welded parts, low-load brackets, connecting pieces, gaskets, protective covers, decorative iron parts, iron wire, steel pipes, welded pipes, ordinary hardware parts, light-duty rack accessories, fence parts, internal structural parts of home appliances, low-cost metal housings, and lightweight structural parts.
Not suitable for the product
High-strength load-bearing parts, high-hardness wear-resistant parts, high-impact parts, long-term exposed outdoor parts, highly corrosive environment parts, food direct contact parts, medical implant parts, high-precision transmission parts, high-temperature long-term load-bearing parts, metal parts requiring rust-free maintenance, and parts requiring stainless steel appearance and corrosion resistance.
Key parameter references
The following parameters come from product information and material knowledge fields, used for design review, quotation communication, and preliminary judgment before material selection.
| Material positioning | Suitable for low-strength structural parts, stamped parts, bent parts, welded parts, ordinary sheet metal parts, low-cost hardware, and light-duty metal parts as ordinary low-carbon steel materials. |
|---|---|
| Precision performance | Q195 is suitable for laser cutting, CNC stamping, stamping forming, bending, welding, and general machining. The precision of sheet metal parts is affected by plate thickness, cutting method, stamping die, bending and springback, welding thermal deformation, and surface treatment. Compared to CNC precision parts, Q195 sheet metal parts are more suitable for standard structural dimensions and low-cost mass manufacturing. Precision hole positions and assembly surfaces are recommended for post-processing or separate tolerance control. |
| Dimensional tolerances | For ordinary laser cutting or stamping, dimensional tolerances can be referenced as ±0.10mm-±0.30mm; after bending, the overall dimensional tolerance can be ±0.30mm-±1.00mm. Welded structural parts may need to be evaluated at ±0.50mm-±2.00mm. If CNC machining is used, conventional dimensional tolerances can refer to ±0.05mm-±0.20mm. These values are standard reference ranges and do not guarantee absolute tolerances for all structures; actual measurements must be confirmed based on plate thickness, dimensions, structure, and process requirements. |
| Minimum Wall Thickness | Q195 is commonly used in the form of plates, steel strips, steel wires, or profiles. Ordinary thin panels can be used in thicknesses of 0.5mm, 0.8mm, 1.0mm, etc.; For ordinary sheet metal housings, it is recommended to be no less than 0.8mm-1.0mm; areas requiring welding, tapping, bearing assembly forces, or structural support should be appropriately thickened. |
| Recommended wall thickness | Standard stamped parts, bent parts, and enclosures are recommended at 0.8mm-2.0mm; ordinary brackets, connectors, and welded parts are recommended at 1.2mm-3.0mm; positions bearing assembly force, screw tightening, or light loads are recommended at least 2.0mm, and rigidity should be improved through folding, flanging, reinforcing ribs, or welded structures. |
| Minimum aperture | Stamping or laser cutting aperture is recommended to be no less than one time the plate thickness, and stable design suggests the hole diameter should not be less than 1.0mm-1.5mm. Small holes, dense holes, and holes near bending lines are prone to deformation or burrs. Screw holes, positioning holes, and assembly holes should be reasonably allowable according to plate thickness, fastener specifications, coating thickness, and processing method. |
| Assembly clearance | For ordinary sheet metal assembly, it is recommended to reserve 0.20mm-0.50mm on one side; for ordinary insertions, flanges, slots, and multi-bend structures, it is recommended to appropriately increase the clearance according to plate thickness, bending error, and coating thickness. If powder coating, painting, galvanizing, or electroplating is needed later, additional consideration should be given to surface treatment thickness to avoid over-tight assembly, paint scraping, or interference from hole positions. |
| Detailed performance | Q195 is suitable for making holes, grooves, folded edges, flanges, pressed ribs, welded structures, stamped structures, standard markings, and low-cost hardware details. Passing through small grooves, sharp corners, and narrow bridge positions requires consideration of stamping burrs, deformation, and die life. Text, logos, and markings are recommended to be achieved through stamping, laser marking, etching, silkscreen printing, or inkjet coding; it is not recommended to design overly fine mechanical cutting text on thin plates. |
| Surface effect | The original surface of Q195 is usually gray-black or silver-gray metallic, and may have oxide scale, oil stains, scratches, or rust spots. After galvanizing, it can achieve a silver-white or colored zinc appearance; after painting or powder spraying, it can achieve multiple colors and better protection; after blackening or phosphating, it can produce a black or gray-black rust-resistant surface. If long-term appearance stability is desired, galvanizing, powder coating, painting, or switching to stainless steel materials are recommended. |
Typical application scenarios
Based on material characteristics and suitable product ranges, customer needs are broken down into easier application directions to determine.
Product validation
Standard sheet metal parts, stamped parts, bent parts, welded parts, low-load brackets, connecting pieces, gaskets, protective covers, decorative iron parts, iron wire, steel pipes, welded pipes, ordinary hardware parts, light-duty rack accessories, fence parts, internal structural parts of home appliances, low-cost metal housings, and lightweight structural parts.
Reasons for material selection
Suitable for low-strength structural parts, stamped parts, bent parts, welded parts, ordinary sheet metal parts, low-cost hardware, and light-duty metal parts as ordinary low-carbon steel materials.
Material characteristics
Q195 has a low carbon content, is relatively soft, has good ductility and cold workability, and is suitable for stamping, bending, drawing, welding, and ordinary sheet metal fabrication. Its strength and hardness are relatively low, making it unsuitable for high-load or highly wear-resistant scenarios. Since it is ordinary carbon steel, it is prone to rust in exposed environments. In practice, products typically require surface protection such as galvanizing, painting, powder coating, blackening, phosphating, or anti-rust oil.
Design and risk review
Based on wall thickness, hole position, assembly clearance, dimensional tolerances, and material usage risks, determine in advance whether the part structure is suitable for Q195.
Design considerations
- When designing Q195 parts
- Focus should be placed on plate thickness
- Bending radius
- Distance from the hole to the bend line
- Direction of burrs
- Welding deformation
- Surface rust prevention and coating thickness
- It is recommended to add folded edges to the load-bearing position
Precision performanceQ195 is suitable for laser cutting, CNC stamping, stamping forming, bending, welding, and general machining. The precision of sheet metal parts is affected by plate thickness, cutting method, stamping die, bending and springback, welding thermal deformation, and surface treatment. Compared to CNC precision parts, Q195 sheet metal parts are more suitable for standard structural dimensions and low-cost mass manufacturing. Precision hole positions and assembly surfaces are recommended for post-processing or separate tolerance control.
Dimensional tolerancesFor ordinary laser cutting or stamping, dimensional tolerances can be referenced as ±0.10mm-±0.30mm; after bending, the overall dimensional tolerance can be ±0.30mm-±1.00mm. Welded structural parts may need to be evaluated at ±0.50mm-±2.00mm. If CNC machining is used, conventional dimensional tolerances can refer to ±0.05mm-±0.20mm. These values are standard reference ranges and do not guarantee absolute tolerances for all structures; actual measurements must be confirmed based on plate thickness, dimensions, structure, and process requirements.
Quality riskThe main risks of Q195 are low strength, surface rust, thin plates prone to deformation, possible welding deformation, and risks of springback and burrs during stamping bending. It is suitable for low-cost, light-load structural components, but not for high-strength, highly wear-resistant, or highly corrosive environments. When used for exterior and long-term use parts, focus should be paid to anti-rust treatment, coating adhesion, edge burrs, welding deformation, and bumps and scratches during transportation.
Surface effectThe original surface of Q195 is usually gray-black or silver-gray metallic, and may have oxide scale, oil stains, scratches, or rust spots. After galvanizing, it can achieve a silver-white or colored zinc appearance; after painting or powder spraying, it can achieve multiple colors and better protection; after blackening or phosphating, it can produce a black or gray-black rust-resistant surface. If long-term appearance stability is desired, galvanizing, powder coating, painting, or switching to stainless steel materials are recommended.
Post-processing and assembly precautions
Post-processing of Q195 affects appearance, dimensions, hole position, assembly clearance, and usage validation results, and should be explained in advance during quotation, DFM review, and sample confirmation stages.
Post-processing options
Post-processing should focus on appearance display, dimensional fitting, connection assembly, and testing verification. Parts involving assembly positions need to be reserved in advance for machining, coating, and trial assembly allowances.
Key control point
Size impactQ195 is prone to oxidation and rust; processing; After cleaning or welding, rust prevention treatment should be applied promptly; Galvanizing; Spray painting; powder spraying; Phosphating and blackening both affect surface dimensions and assembly clearances; After welding, oxide scale may appear in the weld seam area
Assembly clearanceFor positions involving snapping, plugging, sliding, or enclosure closure, the clearance needs to be adjusted according to post-processing thickness, material shrinkage, and trial assembly results.
Hole Position StrengthThreading, inserting nuts, locking screws, and the areas around positioning holes need to ensure wall thickness to avoid cracks, stripped threads, or chipped edges during post-processing or assembly.
Environmental matchingWhen used in high-temperature, outdoor, humid, friction, or load-bearing scenarios, post-processing materials, adhesives, coatings, and fasteners must also meet the corresponding usage environment.
Structure and usage boundaries
For common issues such as threads, snaps, strength, temperature resistance, and weather resistance, identify in advance whether the material needs to be replaced or if another processing method should be used.
Thread Recommendation
Applicable ScopeQ195 can be tapped, but due to its lower material strength, the direct tapping strength of thin plates is limited.
Risk pointFor thin plate connections, it is recommended to use welded nuts, press rivet nuts, pull rivet nuts, studs, rivets, or standard fasteners.
Recommended practiceIf the plate thickness is sufficient, you can tap directly, but you need to ensure sufficient thread meshing length. For high locking force or frequent disassembly, it is not recommended to rely on direct threading on Q195 thin plates.
Buckle recommendation
Applicable ScopeQ195 is not suitable for designing large deformation elastic buckles like plastic.
Risk pointLow-deformation metal slots, bent buckles, pressure plates, limit plates, inserts, or screw fixing structures can be designed, but it is not recommended to rely on them for long-term repeated elastic deformation.
Recommended practiceIf spring clips, spring plates, or high-elasticity clips are needed, 65Mn, 301 stainless steel, spring steel, or specialized elastic materials should be chosen.
Strength and Environment
Mechanical strengthQ195 has relatively low strength, making it suitable for light-duty structural parts, ordinary sheet metal parts, stamped parts, welded parts, and low-cost hardware.
Environmental boundaryIt has good plasticity and formability, but limited load-bearing capacity, wear resistance, and impact resistance.
Recommended practiceIf parts require higher strength or better structural reliability, Q235, #20, #45, alloy steel, or structural reinforcement should be considered to enhance load-bearing capacity. Q195 has better temperature resistance than plastics and some non-metallic materials, making it suitable for general metal engineering environments. However, the surface is prone to oxidation at high temperatures, and long-term high temperatures will affect strength, surface condition, and anti-rust coatings. When applying high-temperature load-bearing, thermal cycling, welding heat-affected zones, or near heat sources, verification should be conducted in consideration of specific temperature, load, and surface treatment. Q195 has poor weather resistance and rusts easily in exposed environments, especially in humid conditions, salt spray, acidic or alkaline environments, outdoor environments, or with moisture. For outdoor use or long-term use, galvanizing, electroplating, painting, powder coating, blackening, rust prevention, phosphating, or other protective treatments must be performed. If customers require maintenance-free corrosion resistance, priority should be given to 304, 316 stainless steel, or other corrosion-resistant materials.
Alternative material selection and final judgment
When customer demand exceeds Q195 material boundaries, it is necessary to combine strength, temperature resistance, toughness, long-term stability, and mass production goals to promptly recommend alternative materials or processing technologies.
Alternative material suggestions
If higher strength is required, Q235, 20# steel, 45# steel, or low-alloy steel can be chosen; If better corrosion resistance is needed, galvanized sheet, 304 stainless steel, or 316 stainless steel can be chosen; If better sheet metal appearance and lightweight design are needed,5052 Aluminum Alloy or 6061 can be chosen; If spring pieces or high-elasticity structures are needed, 65Mn, 301 stainless steel, or spring steel can be chosen; If you only need low-cost ordinary iron parts, Q195 remains a common choice.
Material selection suggestions
If customers mainly focus on low cost, easy formability, easy welding, and general light-load structures, Q195 is a suitable choice. If customers require load-bearing, wear-resistant, long-term outdoor durability, corrosion resistance, or high-strength performance, priority should be given to Q235, #45 steel, stainless steel, aluminum alloy, or adding reliable surface protection treatments. Q195 is more suitable for "low-cost, lightweight parts" and not suitable for "high-strength functional parts."
