CNC insulation materials suitable for electrical insulating parts, electronic test fixtures, structural support plates, insulating gaskets, PCB tooling, internal equipment insulation structures, and medium-strength engineering panel parts.

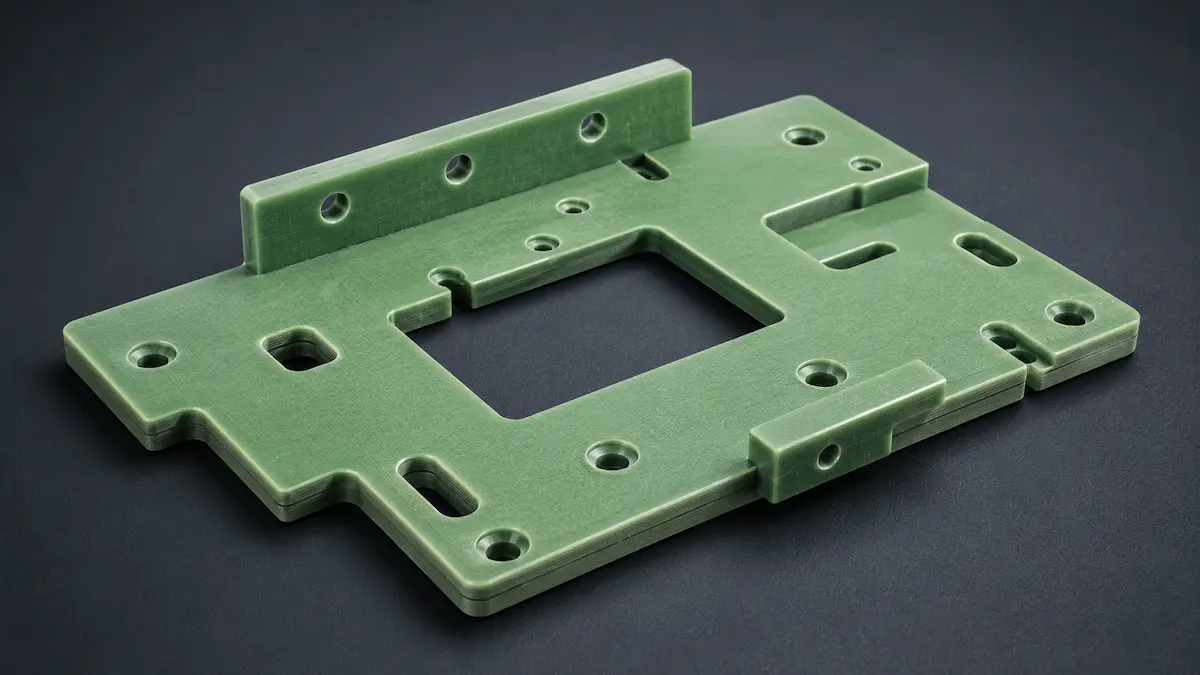

CNC FR-4 Epoxy Glass Laminate is a glass fiber reinforced epoxy resin sheet part manufactured by CNC machining, featuring good electrical insulation, mechanical strength, dimensional stability, heat resistance, and flame retardancy. It is commonly used in insulating boards, jig plates, electronic and electrical structural components, test fixtures, PCB-related tooling, insulating supports, gaskets, and internal insulation structures of equipment. Compared to ordinary plastics, FR4 offers better rigidity, heat resistance, and more stable insulation properties; However, the material contains fiberglass, which is less tough and less durable than plastics like ABS and Polycarbonate (PC), and processing dust requires focused control.
By focusing on application scenarios, boundaries of advantages, and non-recommended scenarios, it helps sales, customer service, and quoting staff quickly determine whether the material meets current part requirements.
It has good electrical insulation, good dimensional stability, good mechanical strength, high rigidity, good heat resistance, good flame retardancy, suitable for CNC machining, electronic and electrical tooling, and insulation isolation and structural support scenarios.
Insulating plates, insulating gaskets, electronic test fixtures, PCB test fixtures, ICT fixture boards, equipment insulation brackets, electrical isolation boards, switchgear insulation components, sensor mounting boards, instrumentation structural components, motor insulation pads, connector positioning plates, tooling fixtures, heat-resistant insulation support parts.
Transparent appearance parts, high-toughness snap fasteners, high-impact parts, high-elasticity structural parts, high-gloss appearance parts, long-term load-bearing structural parts, food direct contact parts, medical implant parts, strong acid and strong alkali environment parts, complex curved surface appearance parts, high-precision decorative parts, and parts requiring flexible deformation.
The following parameters come from product information and material knowledge fields, used for design review, quotation communication, and preliminary judgment before material selection.
| Material positioning | CNC insulation materials suitable for electrical insulating parts, electronic test fixtures, structural support plates, insulating gaskets, PCB tooling, internal equipment insulation structures, and medium-strength engineering panel parts. |
|---|---|
| Precision performance | CNC FR-4 Epoxy Glass Laminate can achieve good planar machining accuracy and hole position accuracy, making it suitable for jig plates, insulating boards, and positioning structural components. Actual accuracy is affected by sheet thickness, lamination direction, tool condition, clamping method, machining parameters, hole size, and edge chipping. ForPCB test fixtures, positioning holes, assembly holes, and pin holes, hole position, tolerances, and hole quality should be controlled separately. |
| Dimensional tolerances | The typical dimensional tolerances for CNC machining of FR4 can be referenced ± 0.05mm to ±0.15mm, while ordinary insulating boards and fixtures can be evaluated at ±0.10mm to ±0.30mm. Large plates, thin plates, densely pore parts, and complex slot components may experience greater deviations. This value is a standard reference range and does not guarantee the absolute tolerance for all structures. Tolerance requirements for the test fixture holes, positioning holes, and assembly surfaces should be separately marked. |
| Minimum Wall Thickness | The wall thickness of ordinary CNC-machined FR4 structures is recommended not less than 1.0mm. Thin walls, narrow bridges, slender strips, and areas with narrow hole edge spacing are prone to chipping, cracking, or delamination. When used as insulation boards, jig boards, and support structures, designs with overly narrow connecting ribs and overly thin edges should be avoided. |
| Recommended wall thickness | Standard insulation boards, gaskets, and jig boards are recommended at 1.5mm-3.0mm; structures requiring assembly force, screw locking, positioning, or clamping are recommended at least 2.0mm; for large panels and fixture boards requiring flatness, it is recommended to increase thickness or add support structures to avoid warping and deformation. |
| Minimum aperture | CNC drilling can achieve smaller hole diameters, but small holes are prone to burrs, chipped edges, or fiberglass residue. Standard designs recommend a hole diameter of no less than 1.0mm; dense holes, pinhole holes, and test holes should be evaluated separately based on tool size, hole spacing, and plate thickness. The recommended distance from holes to edges is not less than 1.0mm-1.5mm, and important assembly holes and load-bearing holes should appropriately increase the margin. |
| Assembly clearance | For general assembly, it is recommended to reserve 0.10mm-0.30mm on one side; for insertion, positioning, and fixture assembly, it is recommended to reserve 0.05mm-0.20mm based on hole position accuracy, plate thickness, and machining burrs. If there are many parts or repeated disassembly and assembly are required, the gap should be appropriately enlarged, and the openings should be chamfered and deburred to avoid insertion difficulties or scratching the parts. |
| Detailed performance | FR4 is suitable for machining holes, grooves, steps, chamfers, window openings, positioning holes, counterbos, and simple structural details. Because the material contains fiberglass, excessive text, sharp corners, thin edges, and complex decorative textures can easily cause chipped edges or fuzzy edges. Logos and markings are recommended to be achieved through silkscreen printing, engraving, or laser marking, but complex decoration is not recommended on key insulating surfaces and high-precision hole areas. |
| Surface effect | The original surface of FR4 is usually green, yellow, black, or natural color board, with a laminated texture. The surface is relatively flat but not a high-gloss finish. The edges machined by CNC are often light-colored or whitish, with visible fiberglass textures. Chamfering, sanding, and cleaning will make the edges look neater. FR4 is more of a functional material and is usually not used as a high-end decorative part. |
Based on material characteristics and suitable product ranges, customer needs are broken down into easier application directions to determine.
Insulating plates, insulating gaskets, electronic test fixtures, PCB test fixtures, ICT fixture boards, equipment insulation brackets, electrical isolation boards, switchgear insulation components, sensor mounting boards, instrumentation structural components, motor insulation pads, connector positioning plates, tooling fixtures, heat-resistant insulation support parts.
CNC insulation materials suitable for electrical insulating parts, electronic test fixtures, structural support plates, insulating gaskets, PCB tooling, internal equipment insulation structures, and medium-strength engineering panel parts.
FR4 is a composite of epoxy resin and glass fiber, featuring high rigidity and excellent insulation properties, and is a common engineering sheet in the electronics and electrical fields. It is suitable for making flat plates, supports, insulation, and fixture parts. FR4 is not suitable for high-toughness shells or elastic clasps. After processing the material edges, fiberglass burrs, delamination, chipping, or dust may appear, so it is necessary to select tools, machining parameters, and edge treatment methods appropriately.
Based on wall thickness, hole position, assembly clearance, dimensional tolerances, and material usage risks, determine in advance whether the part structure is suitable for FR-4 Epoxy Glass Laminate.
Post-processing of FR-4 Epoxy Glass Laminate affects appearance, dimensions, hole position, assembly clearance, and usage validation results, and should be explained in advance during quotation, DFM review, and sample confirmation stages.
Post-processing should focus on appearance display, dimensional fitting, connection assembly, and testing verification. Parts involving assembly positions need to be reserved in advance for machining, coating, and trial assembly allowances.
For common issues such as threads, snaps, strength, temperature resistance, and weather resistance, identify in advance whether the material needs to be replaced or if another processing method should be used.
When customer demand exceeds FR-4 Epoxy Glass Laminate material boundaries, it is necessary to combine strength, temperature resistance, toughness, long-term stability, and mass production goals to promptly recommend alternative materials or processing technologies.
If better appearance and toughness are needed, CNC ABS or Polycarbonate (PC) can be chosen; If better wear resistance and dimensional stability are needed, CNC Acetal (POM) can be chosen; If higher temperature resistance and insulation performance are required, Phenolic Resin (Bakelite) boards, PPS, Polyether Ether Ketone (PEEK), or ceramic materials can be chosen; If transparent insulating parts are needed, Acrylic (PMMA) or Polycarbonate (PC) can be chosen; If you only use ordinary low-cost insulating gaskets, you can choose Polyvinyl Chloride (PVC), Polypropylene (PP), PET, or ordinary insulating plastic sheets.
If customers mainly care about electrical insulation, heat resistance, rigidity, dimensional stability, and electronic fixture applications, CNC FR-4 Epoxy Glass Laminate is the right choice. If customers care more about appearance, texture, toughness, impact resistance, or complex shell structures, it is recommended to choose engineering plastics such as ABS, Polycarbonate (PC), nylon, or Acetal (POM). If customers require higher temperatures, higher insulation grades, or harsher electrical environments, further evaluation should be made of Phenolic Resin (Bakelite) boards, Polyether Ether Ketone (PEEK), PPS, ceramics, or specialized insulation materials.
